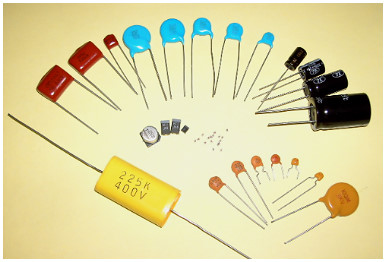

PRODUCTS  CAPACITORS |
| |
 Please call us for PDF file. |
 |
|
|
 Multilayer Ceramic Capacitors |
 |
Axial, Radial, DIP Type
Epoxy dipped, Axial , Radial leaded multilayer ceramic capacitors. |
|

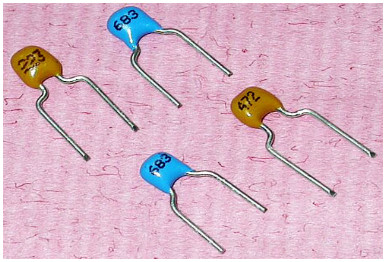

Ceramic Disc Capacitors (1KV - 15KV) |
 |
DIP Type :
• Ceramic disc capacitors - class 1, class 2, class 3.
• High voltage ceramic capacitor (1KV - 15KV). |
|
|

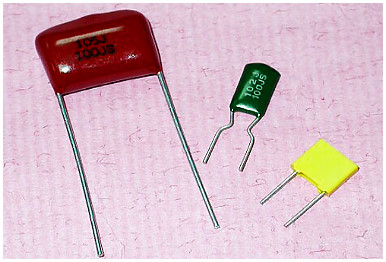

Polyester Film Capacitors, Metallized
Polypropylene Film Cap, X2 .... |
 |
Type :
1. Radial dipped. 2. Flat oval. Axial leads.
3. Tubular, axial leads. 4. Plastic case, radial leads.
5. Mini box. |
|
 |
Metal Oxide Film Resistors
Main Brand : Yageo, Walsin, Samsung ....

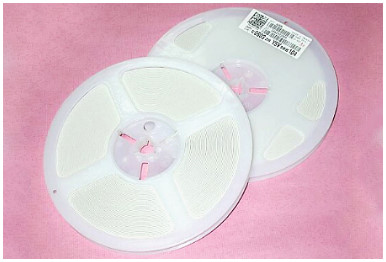

SMD Type :
• Size: 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225.
• Dielectric: NPO, X7R, Y5V, Z5U.
• General purpose, NPO: 16V to 100V,
X7R: 16V to 100V,
Y5V: 10V to 50V.
• High capacitance X5R / X7R 6.3V to 25V.
• Mid-voltage, NP0/X7R 100 V to 500 V.
• High-voltage MLCCs for power applications like 1KV, 2KV, 3KV... |
|
 |
Aluminum Electrolytic Capacitor
DIP Type :
• Standard series: Radial, axial, low leakage.
• Subminiature series: Radial, axial, low leakage.
• Non - polar & bi - polarized series: Radial, axial.
• Large can series: Snap - in.
SMD Type :
• Size: 4Ø, 5Ø, 6.3Ø, 8Ø, 10Ø.
• Standard: 85°C stand, Life: 1000hrs.
• High: 105°C, Life: 2000hrs. |
|
 |

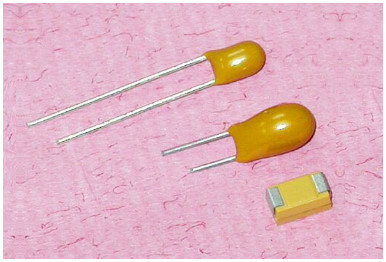

Tantalum Capacitors
DIP & SMD Type :
1. Epoxy-coated solid electrolytic tantalum capacitors.
2. Metal-cased solid tantalum electrolytic capacitors with axial leads.
3. Silver-cased wet tantalum electrolytic capacitors with axial leads.
4. SMD Series: Standard, low ESR Capacitance: 1PF - 10UF.
• Voltage: 6.3V to 50V.
• Size: P, A, B, C, D, E, V.
• Tolerance: +/-5%, +/-10%, +/-20%.
• Brand: AVX, Hitachi, Kemet, NEC, Samsung, EPCOS, Sprague.
• (A, B, C, D-Case) / SMD cross reference:
P: 2012 A: 3216 -18B: 3528 -21C: 6032 -28
D: 7343 -31E: 7343 -43V: 7361 -38 |
|
|
 |
|
